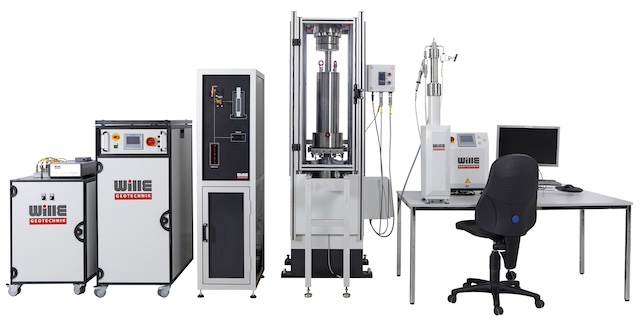

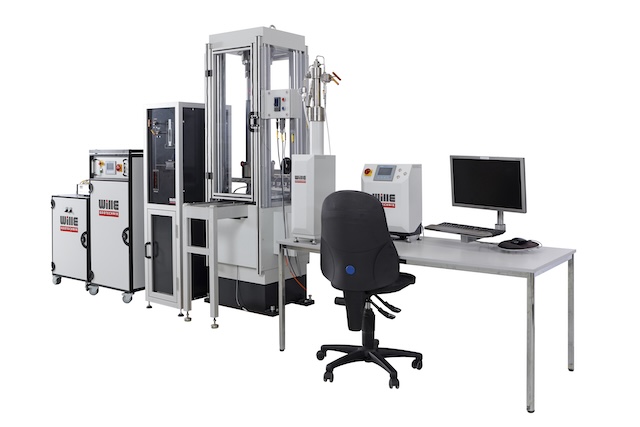

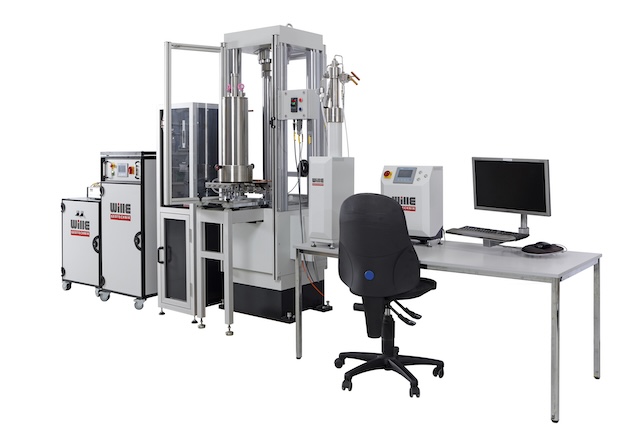

Rock Triaxial Test System
High Pressure-High Temperature Rock testing System
This rock testing plants enables our customers to meet all test requirements in rock research testing per as ASTM standard or ISRM method. The system is configured with stiff load frame hydraulic cylinders, hydraulic power pack, high pressure high temperature triaxial cell and relevant adaptors and accessories in order to perform uniaxial compressive strength, triaxial strength, post failure, indirect tensile, permeability, hydr-fracturing and creep tests for rock testing systems.
The system is able to test a range of materials from soft rock (e.g. sandstone) to hard rock for different applications in rock mechanics research e.g. Exploration and production of fossil fuels, Mining and construction, Tunneling and Geothermal energy development.
GEOsys software, with several testing modules/applications controls the test procedures,means it can work as a fully automated system and provides an easy way to create custom test modules. It enables the users to applying different stress paths or strain rates with real-time graphics with zoom and freeze functions for printer output at any time (after and during the test).
- Features
- Specifications
- Software
- Standards
- Applications
- High stiffness 4 columns load frame with load range up to 1000kN
- Frame’s Stiffness up to 1,500kN/mm
- Wall type load frame is available on request
- Advanced high-quality hydraulic power packs with high-quality noise protection, different emergency functions or cyclic test procedures

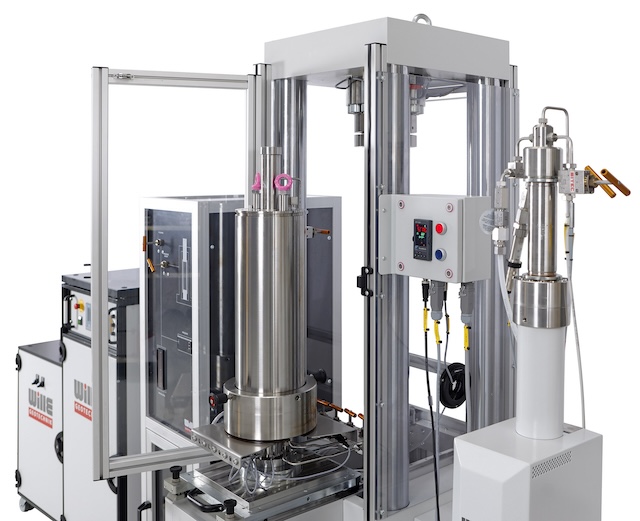

- Triaxial cell up to 70 MPa and +150C degree and sample size up to NX size
- Carriage assembly for easy removal and placing of triaxial cell or automatic lifting cell wall system (on request)
- Optional Transparent test area guard with front security door
| Type of load frame | Servo-hydraulic |
| Compression load | Up to 1,000KN |
| Tension load capacity | On request |
| Confining pressure | Up to 70 MPa |
| Pore pressure | Up to 70 MPa |
| Frame stiffness | Up to 1,500 kN/mm, 1.5 X 10^9 N/m |
| Stroke | 50 mm, optional up to 150 mm |
| Hardness | 55 HRC / Customised |
| Sample sizes | Up to NX or upper |
GEOsys Software for user defined freely programmable test standard procedures and complex test sequences via structured Windows operations on a graphic user interface.
Through a series of menus, this provides quick access to all the controls needed for test set ups and follows standard test sequences.
The software is able to create an unlimited number of test stages with interactive and calculated parameters for closed-loop, real-time control. An unlimited number of control and measuring channels can be simultaneously controlled.
- Not available
- Detailed information will follow soon
