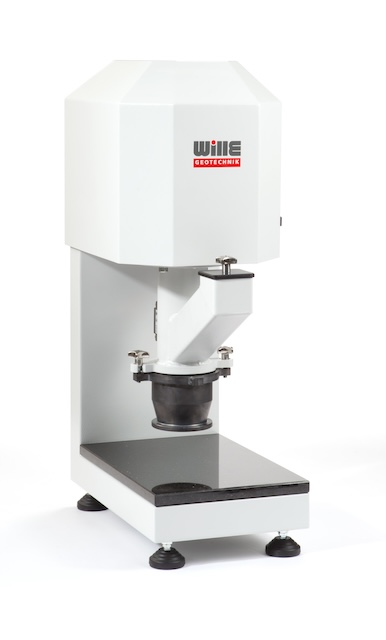

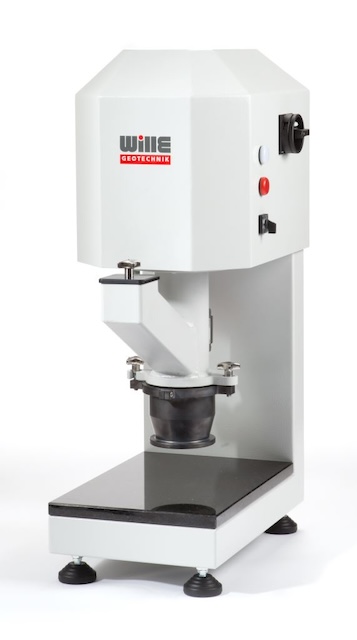

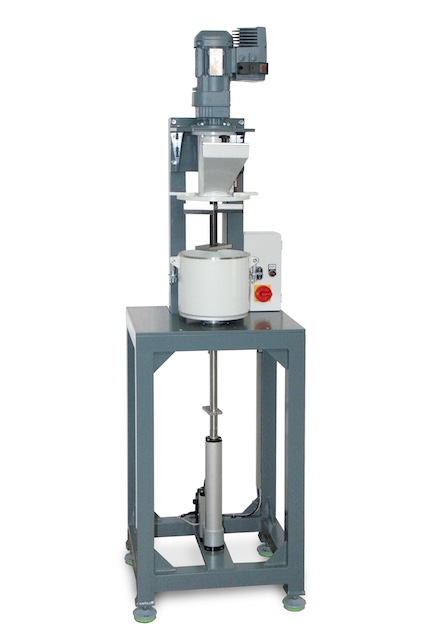

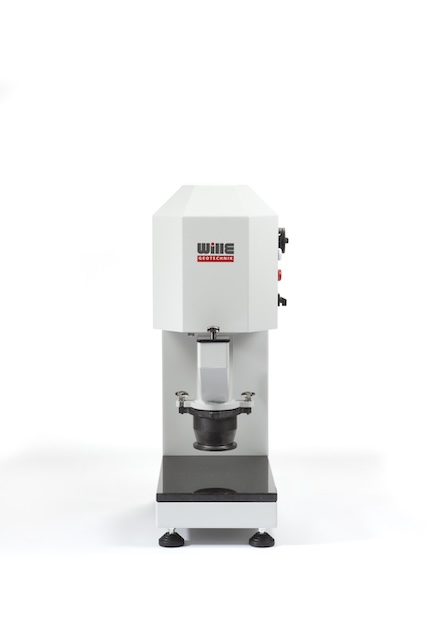

Abrasive Test Machine (LCPC)

The abrasive nature of rock is an important factor when designing appropriate testing machinery. The impact on tool wear much depends on the machinery used for excavation. This includes all devices and tools that come
into contact with the material being excavated. The most technical way to determine rock abrasivity is to use an index laboratory test as well as LCPC.

The LCPC abrasivity testing device is based on the French standard P18-579 and has been developed by the “Laboratoire Central des Ponts et Chausées” (LCPC).

The main principal behind the LCPC abrasivity coefficient is to measure the weight loss of a steel plate rotating at 4500 rpm for 5 minutes in 500 gr of rock previously crushed to pieces of between 4 to 6.3 mm in diameter. This steel (metal) plate has a Rockwell hardness of 60-75 HRB.

The ratio of the plate’s weight loss to the mass of tested material is defined as the abrasivity coefficient (ABR) in terms of gram per ton.




  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications



  • Table top design
  • Normalised according to AFNOR P18-579
  • Easy operation and handling
  • Robust, stiffened frame
  • Integrated funnel including coverage for the reproducible filling of testing pots with material
  • Hardened sample container for high durability, even at high rotational speeds and with highly abrasive rocks
  • High quality Electric motor which meets industrial standard
  • Safety emergency stop switch
  • Comparable with the CERCHAR abrasivity index
  • Able to define abrasivity coefficient on crashed rock material
  • Can test large pieces of crushed rock and aggregates
  • Hardened barrel for high durability, even at high rotational speeds and with highly abrasive rocks
  • Hardened test wing 5 x 25 x 5 mm (L x B x H) Rockwell B 60

Rotational speed

4500 rpm, adjusted electronically

Dimensions (approx.)

500 × 600 × 1900 mm

Power supply

3 x 400 VAC, 50 Hz, 16 A plug IEE

Power consumption

Approx. 1,5 kVA

Miniature fuse

PKZM motor protection 2-5 A Adjustable lifting drive LS C 3A

  • Not available
  • Not available
  • Not available
  • Detailed information will follow soon
