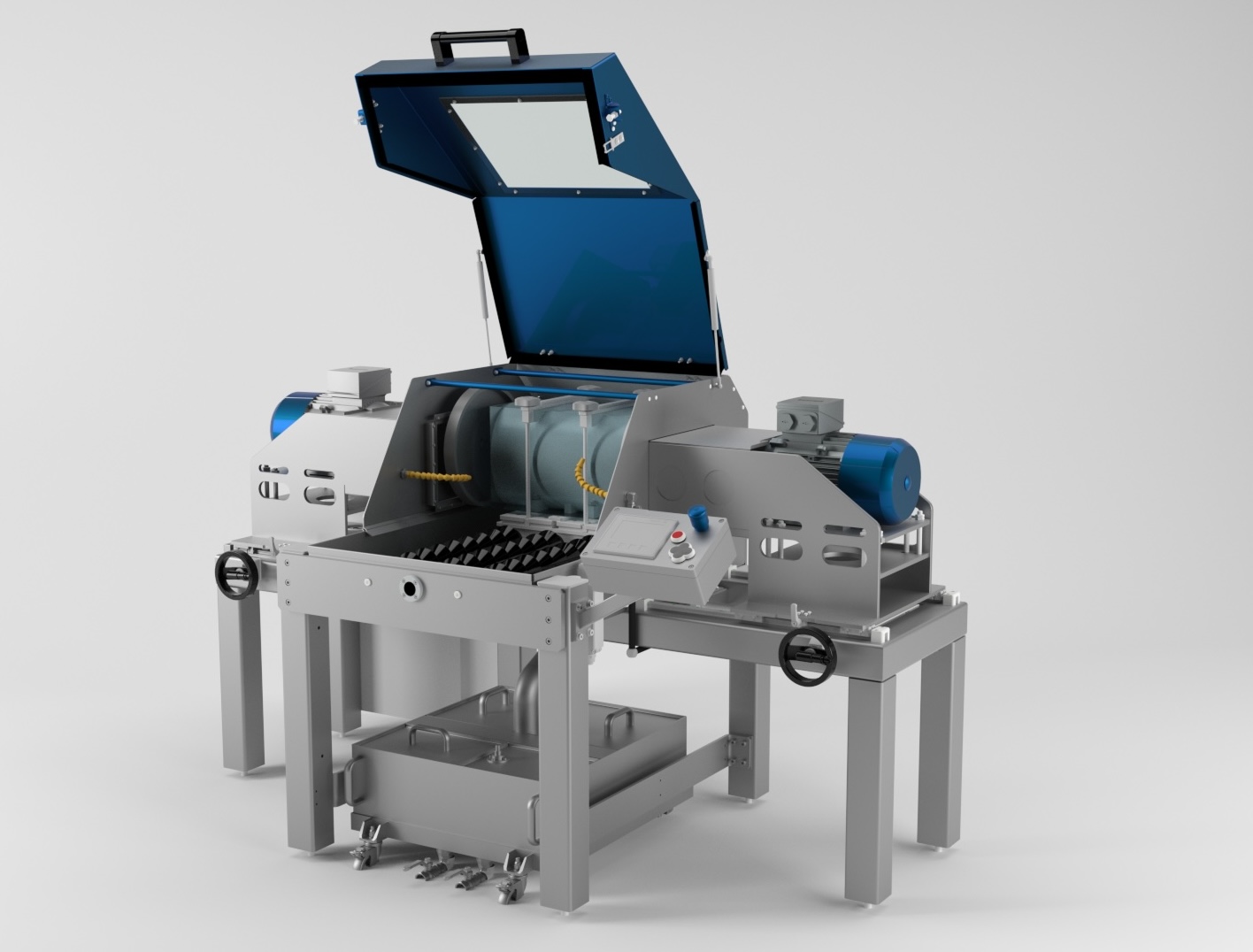

Rock Core Grinding Machine

This grinding machine has two electronic motors and is used for the vertical grinding and polishing of rock samples on two parallel sides. It can be used for working with natural stones, concrete, as well as ceramic and other materials.

The height of the grinding table can be adjusted in micrometres for various sample lengths from 50 to 320 mm via a hand wheel. Cube or cylinder samples are easily locked in place on the grinding table; the grinding head is then lowered by
the hand wheel. Grinding is carried out automatically by moving the sample from one side to the other side.

The machine is equipped for grinding cubic samples from 150 and 200 mm in size, as well as cylindrical samples with diameters from 50 to 150 mm.


  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • Suitable for grinding of high strength specimens made of rock, ceramics, asphalt and concrete
  • Vertical height adjustment of the grinding table
  • Corrosion protection
  • Includes two electric motors for durability
  • Sample chamber
  • Holding fi xture for cubes from 150 and 200 mm in length
  • Holding cylindrical samples from 100 and 150 mm in diameter



ACCESSORIES

  • Diamond cutting tools with diameters of up to 160 mm for cubic and cylinder samples
  • Cooling unit system including a water container with two chambers to separate grinding slurry, as well as a circulation pump and jigs
  • Limit switch box

Dimensions (approx.)

1700 × 1250 × 1450 mm

Weight (approx.)

320 kg

Electrical connection

230/400 V, 50 Hz

Sensitivity

0.05 mm

Cooling unit capacity (available on request)

50 l/h

Custom sample sizes on request

  • Not available
  • Not available
  • Not available
  • Detailed information will follow soon
