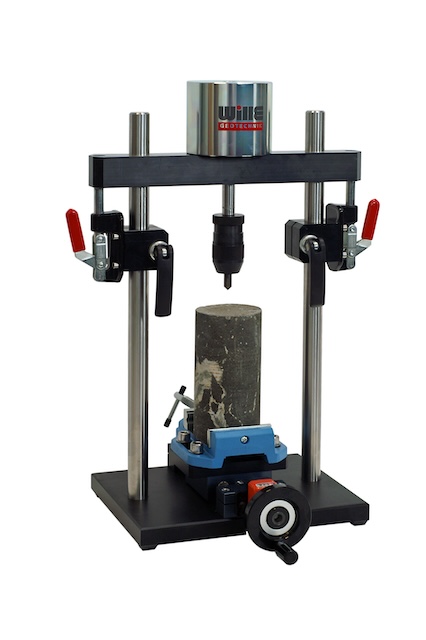

West Cerchar Rock Abrasiveness Tester
The West Cerchar rock abrasiveness tester is used to determine the Cerchar Abrasivity Index (CAI) value in accordance with the ASTM D7625- 10 standard or ISRM method.
This test is a laboratory method to calculate the Cerchar abrasivity index Test was originally developed by the Laboratoire du Centre d’Etudes et Recherches des Charbonnages (CERCHAR) de France for coal mining applications.
An accurate stainless steel dead weight is used for axial test loads of 70 N in combination with a cross-table. The cross-table allows for the highly precise movement of samples which is clamped in the vice of the device.

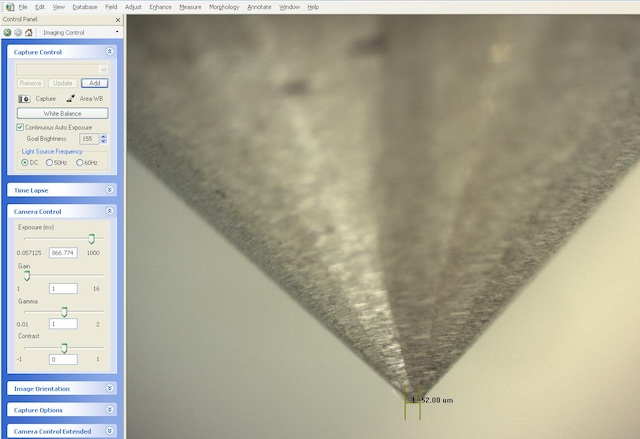

Note: The main device requires microscope to measure wear flat on the pins.

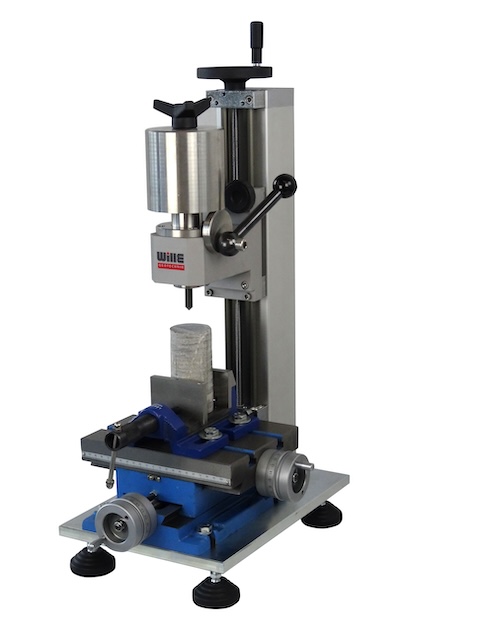

We manufacture two models for Cerchar test device with Portable cross table with 2 adjustable axes for specimen alignment along the two horizontal axes (X and Y directions) or just one adjusting axis.
- Features
- Specifications
- Software
- Standards
- Applications
- Simple manual operation
- Stiff frame with precise movement of the clamping device, head and base plate made of solid aluminum
- Portable cross table with clamping device for the adjustment the specimen in X and Y directions
- Easy adjustment for different sample sizes
- Easy and smooth loading and unloading of specimen using a special extender wheel solution
ACCESSORIES:
- Binocular or trinocular microscopes
- Test pin for Cerchar device:
- Rockwell hardness: 40 / 42 HRC
- Rockwell hardness: 54 / 56 HRC
|
Axial load |
70 N |
|
Maximum sample height |
200 mm |
|
Maximum sample diamter |
Ø 100 mm |
Larger sample size on request
- Not available
- ASTM D7625-10
Standard Test Method for Laboratory Determination of Abrasiveness of Rock Using the CERCHAR Method
- Detailed information will follow soon
