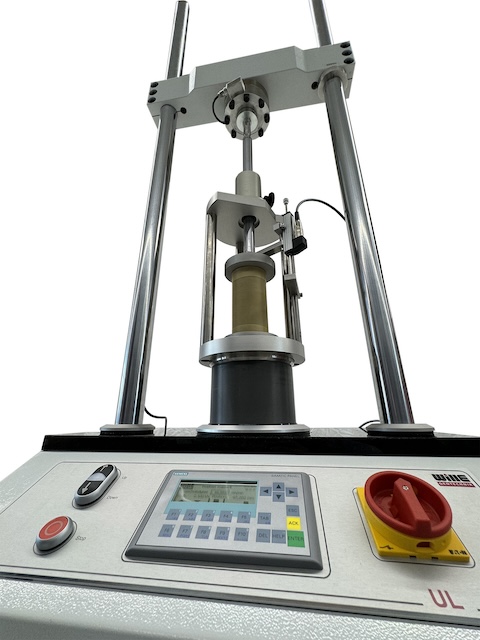

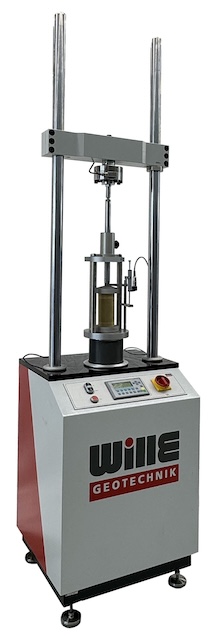

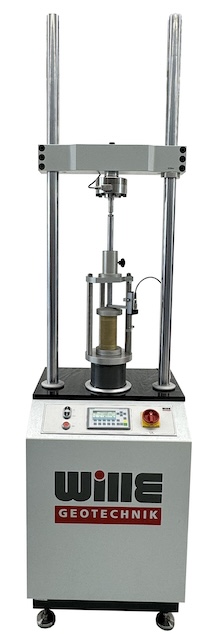

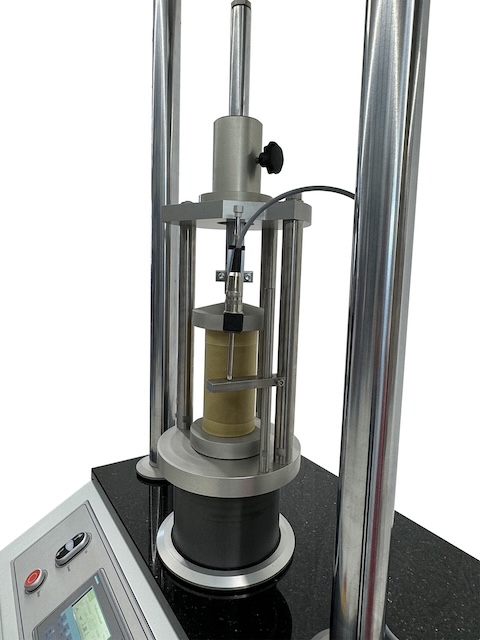

Soil Unconfined Compression Apparatus
This fully automated Unconfined Compression Apparatus is a testing instrument utilized for precise determination of the unconfined compressive strength of cohesive soils in intact, remolded, or reconstituted states within laboratory environments. ġt facilitates accurate and regulated application of axial load onto a soil sample, excluding the confining pressure commonly administered in alternative compression tests.
This testing device is consisting basically of bench top 2 column Electromechanical universal load frame incorporates an extensive range of features making them ideal for performing either complex or ordinary soil testing applications and are characterized by their robust, functional design.
The test devices are suitable for unconfined compression test and also can be upgraded for standard triaxial tests, isotropic or anisotropic consolidation. These configurations are ideal for educational, research and commercial purpose.
- Features
- Specifications
- Software
- Standards
- Applications
- High stiffness robust and compact design
- Table top electromechanical load frame with 2 columns with powder-coated
- High quality industrial controller with displayer and membrane keys or Touch panel and graphic display for monitoring of measured values and test procedures
- Easy sample set up and handling of the test
- Axial load up to 50 kN
- Ethernet connection for fast data transferring to PC
- Precise settlement control by using accuratedisplacement Transducer
- Dedicated software Real-time data and graph display
- Direct operation of the device by a PC with controlling software (communication protocol is available)
|
Maximum force |
50 kN |
|
Spindle stroke |
100 mm |
|
Feed rate (stepless) |
<0.00001 - 60 mm/min |
|
Integrated analogue ports |
6 |
|
Vertical clearance |
1200 mm (optional different heights) |
|
Test space width |
360 mm |
- Data Acquisition, processing and device management (DPD) Module
- Saturation Module
- B-value -Test Module
- Consolidation Module (Isotropic or anisotropic)
- Permeability Test Module
- Stress path module: Linear stress paths- p, q or s, t
- Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
- Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
- Static Shear Stage Module: CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
- Unsaturated Test Module
- K0 Test Module
- Tension (Extension) Test Module
- ASTM D-2166
- BS 1377-7
Standard Test Method for: Unconfined Compressive Strength of Cohesive Soil
Methods of test for Soils for civil engineering purposes - Part 7: Shear strength tests (total stress)
- Detailed information will follow soon
