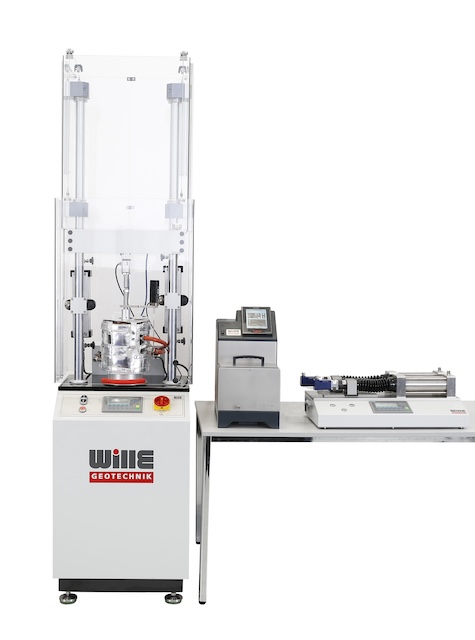

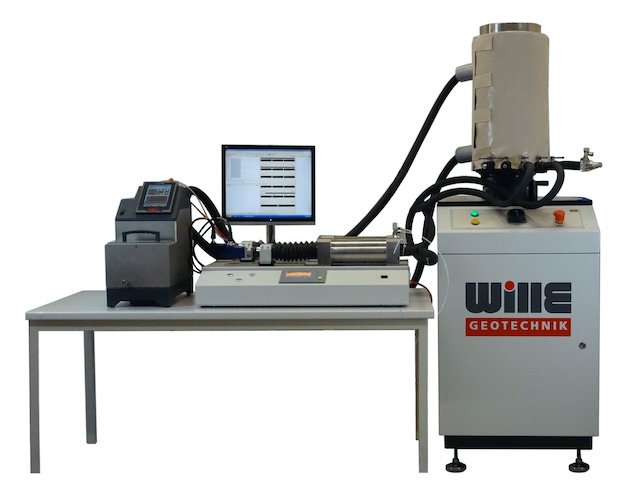

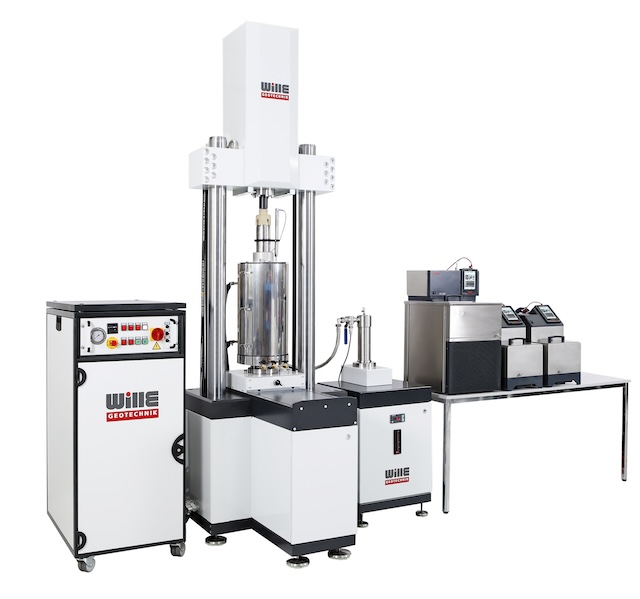

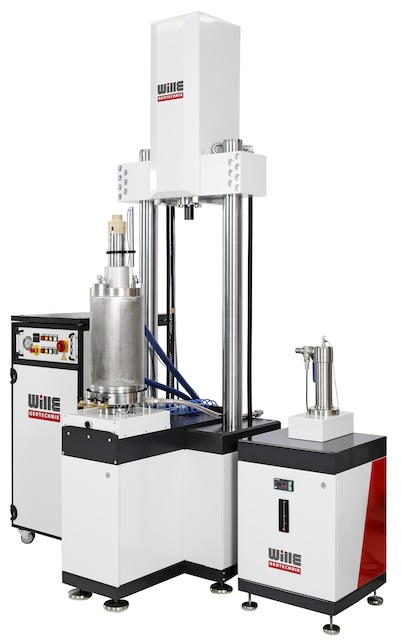

Frozen Soil Triaxial Testing System (Static-Cyclic)

The temperature-controlled Soil triaxial testing systems are designed and manufactured to perform stress path triaxial testing on soil under different temperature conditions. Many tests require temperature controlling of specimens either for high temperatures or for low temperatures. This requires new designed system which would be able to avoid any temperature gradient in samples during tests and make a unique constant temperature condition during tests.

The system can be customized in a variety of test conditions e.g. Static or Cyclic loads with electro-mechanical or hydraulic loading actuator, Low cell pressure or high- cells pressure up to 5MPa, Low-temperature tests or/and high-temperature tests which all can be configured together to meet the test requirements. The temperature-controlling system can control the temperature of the sample in the range of -20 °C to +200 °C.




  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • Static and Cyclic loads in different ranges
  • Electromechanical or servohydraulic loading system to cover all required loads and frequencies
  • Different sample sizes up to 150mm
  • Different cell pressures up to 5MPa
  • Frozen Soil test down to -20 °C degree
  • High-Temperature test up to +200 °C
  • Special-Heat transfer method
  • No need to have internal heating/cooling coil
  • Software including different test modules e.g. Standard Static triaxial tests (CD, CU, and UU), Stress path tests, dynamic tests etc.
  • Ethernet connection for fast data transferring to PC



Max Axial Load

Up to 200 kN

Frequency

Up to 30Hz

Cell pressure

Up to 5 MPa

Sample Size

38mm up to 150 mm

Sample Height/Diameter Ratio

  2:1

Temperature Range

Frozen Soil test up to -20 °C degree

High Temperature test up to +200 °C



  • Lifting device for Triaxial cell
  • Bender Element package
  • Unsaturated Test
  • Local strain transducers
  • Submersible load cell
  • High-Pressure cell
  • Resilient Modulus test
  • K0 tests
  • Water degassing apparatus
  • Bi-axial test package (Plane strain test)



  • Data Acquisition, processing, and device management (DPD) Module
  • Saturation Module
  • B-value -Test Module
  • Consolidation Module (Isotropic or anisotropic)
  • Permeability Test Module
  • Stress path module: Linear stress paths- p, q or s, t
  • Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
  • Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Static Shear Stage Module:CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Unsaturated Test Module
  • K0 Test Module
  • Tension (Extension) Test Module
  • Dynamic Shear Stage Module :
  • Advanced loading Module
  • Resilient Modulus Test Module
  • Temperature-Controlled Triaxial Testing
  • Cyclic Cell / Back Pressure Module
  • ASTM D-7300
  • Standard Test Method for Laboratory Determination of Strength Properties of Frozen Soil at a Constant Rate of Strain

  • ASTM D5520-11
  • Standard Test Method for Laboratory Determination of Creep Properties of Frozen Soil Samples by Uniaxial Compression

  • Detailed information will follow soon
