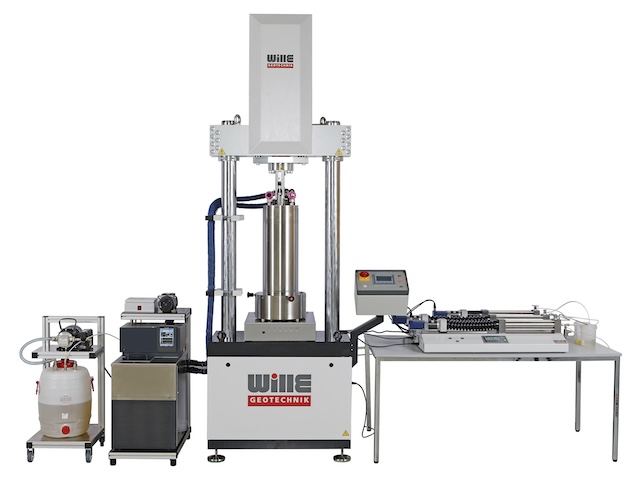

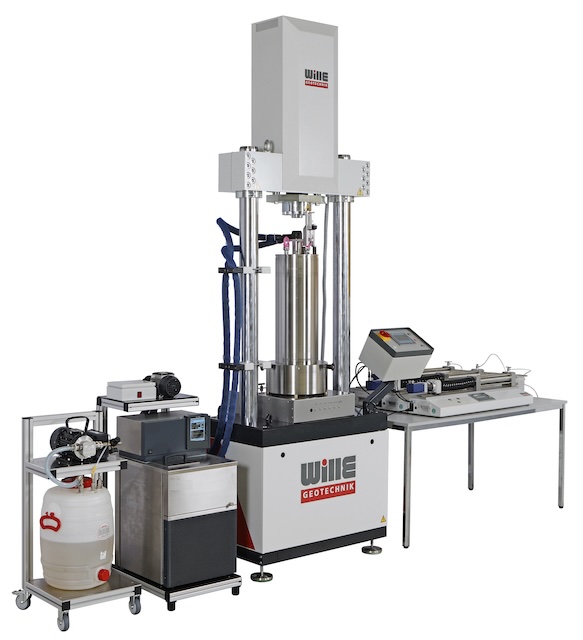

Temperature Controlled High Pressure Triaxial Testing System

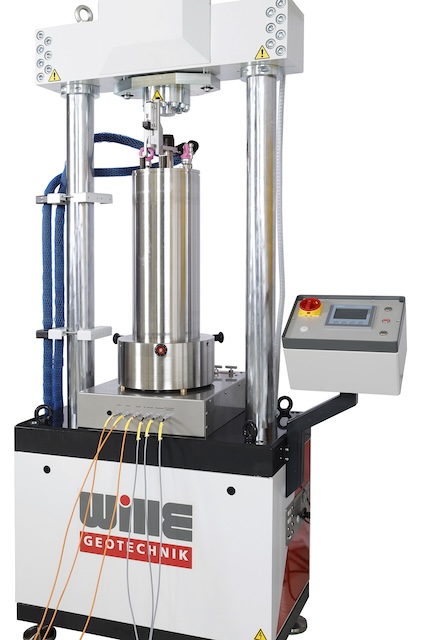

This electromechanical system is constructed with high stiffness and features a precision-aligned load frame, making it suitable for high-load applications. The machine operates without the need for oil pressure and is extremely quiet, making it an absolute low noise machine. The system offers a choice of double wall or 3D temperature-controlling techniques.

This series of Soil triaxial testing systems are designed and manufactured to perform stress path triaxial testing on soft rocks under different temperature conditions.Many tests require temperature controlling of specimen either for high temperature or for low temperatures and this requires new designed system which would be able to avoid any temperature gradient in sample during tests and make a unique constant temperature condition during tests.

The system can be customised in variety test conditions e.g. Static or Cyclic loads with electro-mechanical or hydraulic loading actuator, Low cell pressure or high- cells pressure up to 32MPa, Low temperature tests or/and high temperature tests which all can be configured together to meet the test requirements.The temperature controlling system can control the temperature of sample in range of -20 °C to +200 °C.






  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • Static loads in different ranges up to 250kN
  • Electromechanical loading system to cover all required loads
  • Different sample sizes up to 70mm
  • Different cell pressures up to 50MPa
  • Frozen Soil test up to -20 °C degree
  • High Temperature test up to +200 °C
  • Software including different test modules e.g. Standard Static triaxial tests (CD, CU and UU), Stress path tests, dynamic tests and etc.



Max Axial Load

Up to 250 kN ( Electromechanical)

Sample Size

Up to 70mm

Cell pressure

Up to 50 MPa

Pressure accuracy

0.1% F.S

Pressure Resolution

0.1 kPa

Temperature Range

Frozen Soil test up to -20 °C degree

High Temperature test up to +200 °C

  • Lifting device for Triaxial cell
  • Bender Element package
  • Unsaturated Test
  • Local strain transducers
  • Submersible load cell
  • K0 tests
  • Water degassing apparatus
  • Bi axial test package (Plane strain test)
  • Data Acquisition, processing, and device management (DPD) Module
  • Saturation Module
  • B-value -Test Module
  • Consolidation Module (Isotropic or anisotropic)
  • Permeability Test Module
  • Stress path module: Linear stress paths- p, q or s, t
  • Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
  • Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Static Shear Stage Module: CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Unsaturated Test Module
  • K0 Test Module
  • Not available
  • Detailed information will follow soon
