Servo Hydraulic Dynamic Triaxial Testing System

This series of Dynamic Triaxial test systems gives the possibility to perform large loads and frequencies on the required specimen size in combination of static or cyclic cell pressure.

The Wide column spacing enables to accommodate large cells even with environmental chambers and furnaces. The Triaxial system can generate and apply different types of loading waveforms that can be given to the sample e.g. Sinusoidal, Square, Triangular, Rectangle, Ramp signal, and user-defined waveform.

The dynamic servo hydraulic load frame has different models which could be selected per as required technical test specification of the user e.g:

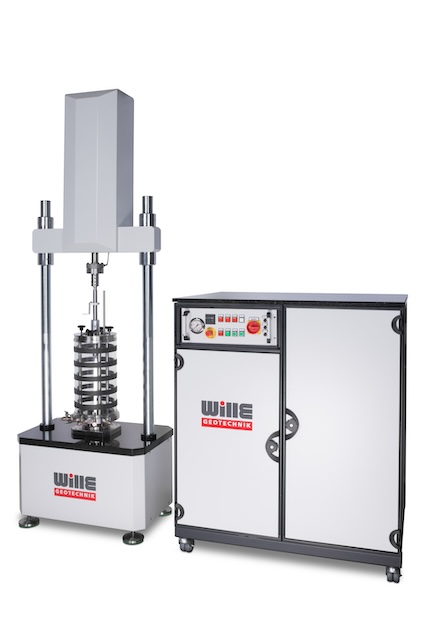

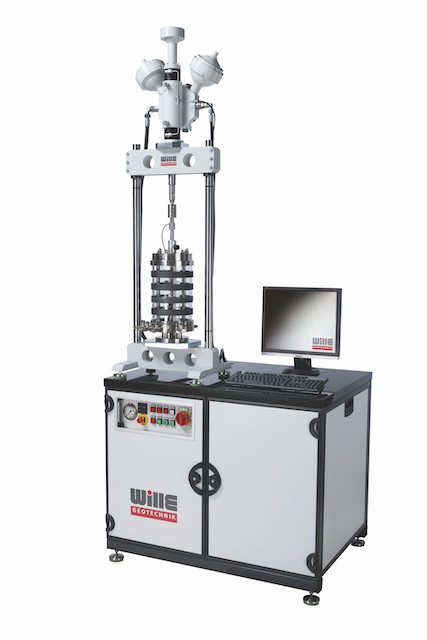

1) Table top model

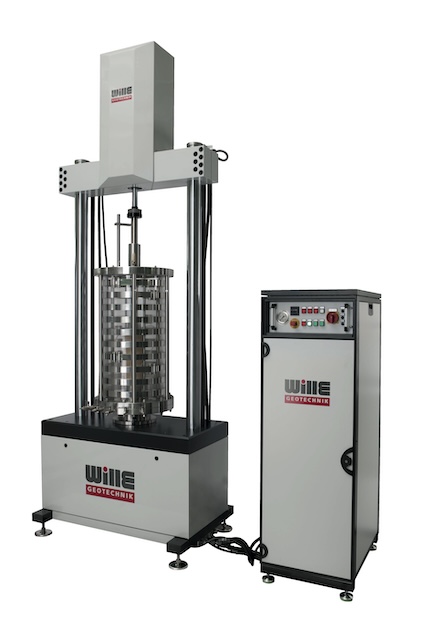

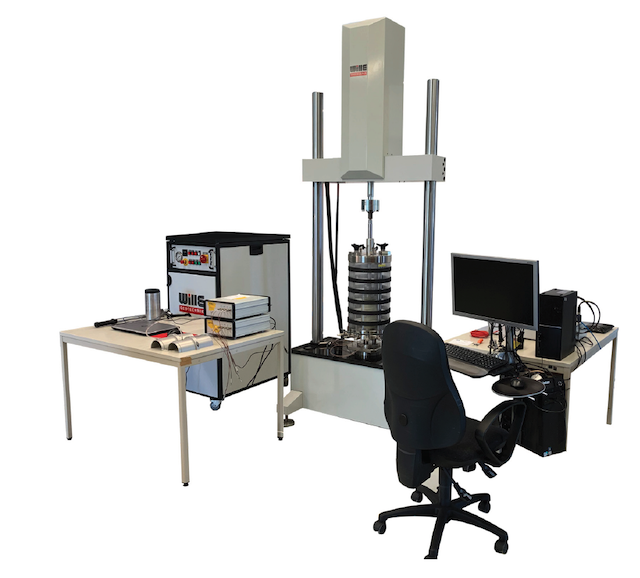

2) Floor type model

3) Twin type model (independent dynamic - static actuators)





Inquiry
Get general catalogues
  • Features
  • Specifications
  • Upgrade Options
  • Software
  • Standards
  • Applications
  • High-stiffness construction and precision-aligned load frame
  • Available in floor-standing and tabletop Models
  • Double Acting extremely low friction actuator
  • Cyclic Loading system is designed for stress, strain, or position-controlled tests
  • Dynamic load up to 300kN-50Hz
  • Suitable for samples from 38mm up to 300mm
  • Triaxial cell with different pressure ranges up to 20MPa
  • Software including different test modules e.g. Standard Static triaxial tests (CD, CU and UU), Stress path tests, dynamic tests and etc.
  • Ethernet connection for fast data transferring to PC
  • Different upgrading options e.g Unsaturated, cyclic cell pressure ,bender element, higher pressure cells and etc.
  • Different types of loading waveform can be given to the sample e.g. Sinusoidal, Square, Triangular, Rectangle and user defined waveform
  •

Static axial load

up to 300kN

Cyclic axial load

Up to 240kN

Cyclic frequency

5 Hz / 10Hz / 30Hz and 60 Hz

Confining pressure

Up to 5 MPa

Sample size

Up to 300 mm
  • Automatic lifting of upper cross bar
  • Lifting mechanism for Triaxial cell
  • Temperature control package
  • Bender Element package
  • Unsaturated Test
  • Local strain transducers
  • Submersible load cell
  • High Pressure cell
  • Resilient Modulus test
  • K0 tests
  • Water degassing apparatus
  • Cyclic Cell and back Pressure



  • Data Acquisition, processing, and device management (DPD) Module
  • Saturation Module
  • B-value -Test Module
  • Consolidation Module (Isotropic or anisotropic)
  • Permeability Test Module
  • Stress path module: Linear stress paths- p, q or s, t
  • Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
  • Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Static Shear Stage Module:CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
  • Unsaturated Test Module
  • K0 Test Module
  • Tension (Extension) Test Module
  • Dynamic Shear Stage Module :
  • Advanced loading Module
  • Resilient Modulus Test Module
  • Temperature-Controlled Triaxial Testing
  • Cyclic Cell / Back Pressure Module
  • ASTM D-2850

    • Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils

  • ASTM D-2850-03a

    • Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils

  • ASTM D-3999-91

    • Standard Test Method for: The Determination of the Modulus and Damping Properties of Soils Using Cyclic Triaxial Apparatus

  • ASTM D-5084

    • Standard Test Methods for Measurement of Hydraulic Conductivity of Saturated Porous Materials Using a Flexible Wall Permeameter

  • ASTM D-5311

    • Standard Test Method for: Load Controlled Cyclic Triaxial Strength of Soil.

  • ASTM D-7181

    • Test Method for Consolidated Drained Triaxial Compression Test for Soils

  • ASTM D-7181-11

    • Method for Consolidated Drained Triaxial Compression Test for Soils

  • BS 1377-6

    • Methods of Test for Soils for Civil Engineering Purposes: Consolidation and Permeability Tests in Hydraulic Cells and with Pore Pressure Measurement

  • BS 1377-8

    • Methods of test for Soils for civil engineering purposes - Part 8: Shear strength tests (effective stress)

  • AASHTO T-292

    • Interim Method of Test for Resilient Modulus of Subgrade Soils and Untreated Base/Subbase Materials

    (replaced by AASHTO T-307)

  • AASHTO T-294

    • Standard Method of Test for Resilient Modulus of Unbound Granular Base/Subbase Materials and Subgrade Soil-SHRP Protocol P46

  • AASHTO T-307

    • Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials

  • AASHTO T-307-99

    • Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials

  • AASHTO TP-46

    • Standard Test Method for Determining the Resilient Modulus of Soils and Aggregate Materials

    (replaced by AASHTO T-307)

  • CEN ISO/TS 17892-11

    • Geotechnical investigation and testing — Laboratory testing of soil — Part 11: Determination of permeability by constant and falling head

  • CEN ISO/TS 17892-8

    • Geotechnical investigation and testing — Laboratory testing of soil — Part 8: Unconsolidated undrained triaxial test

  • CEN ISO/TS 17892-9

    • Geotechnical investigation and testing -- Laboratory testing of soil - Part 9: Consolidated triaxial compression tests on water-saturated soils

  • AS 1289.6.4.1

    • Soil strength and consolidation tests- Determination of compressive strength of a soil-Compressive strength of a specimen tested in undrained triaxial compression without measurement of pore water pressure.

  • AS 1289.6.4.2

    • Soil strength and consolidation tests-Determination of compressive strength of a soil-Compressive strength of a saturated specimen tested in undrained triaxial compression with measurement of pore water pressure

  • AS 1289.6.6.1

    • Soil strength and consolidation tests-Determination of the one-dimensional consolidation properties of a soil-Standard method.

  • JGS 0521

    • Method for Unconsolidated-Undrained Triaxial Compression Test on Soils

  • JGS 0522

    • Method for Consolidated-Undrained Triaxial Compression Test on Soils

  • JGS 0523

    • Method for Consolidated-Undrained Triaxial Compression Test on Soils with Pore Water Pressure Measurements

  • JGS 0524

    • Method for Consolidated-Drained Triaxial Compression Test on Soils

  • JGS 0525

    • Method for K0 Consolidated-Undrained Triaxial Compression Test on Soils with Pore Water Pressure Measurements

  • JGS 0526

    • Method for K0 Consolidated-Undrained Triaxial Extension Test on Soils with Pore Water Pressure Measurements

  • JGS 0541

    • Method for Cyclic Undrained Triaxial Test on Soils

  • JGS 0542

    • Method for Cyclic Triaxial Test to Determine Deformation Properties of Geomaterials

  • Detailed information will follow soon
