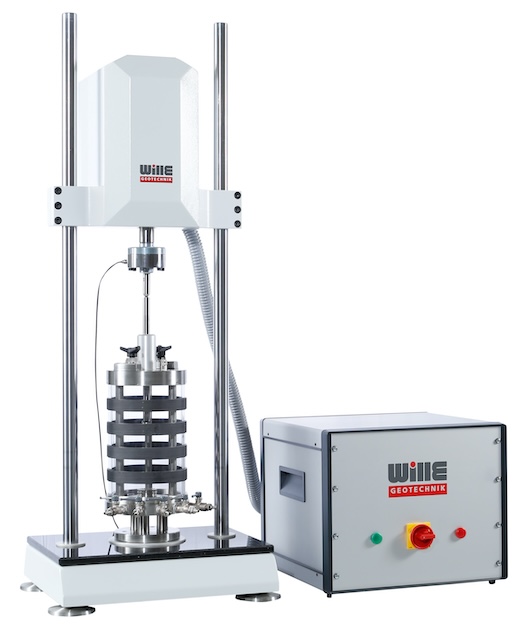

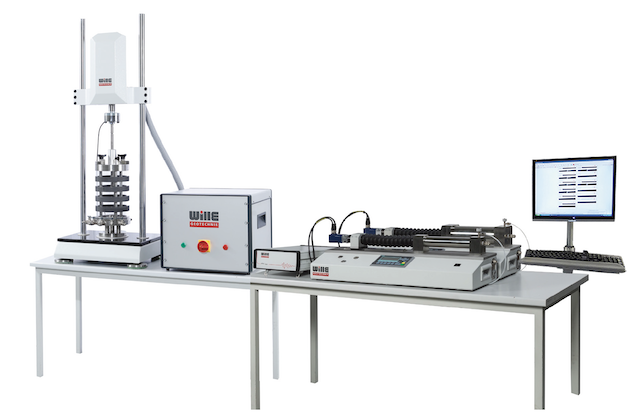

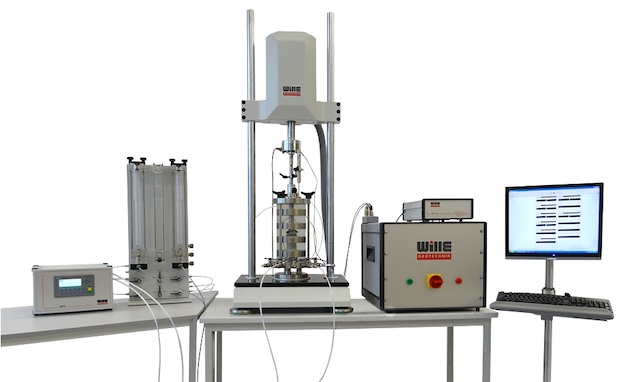

Table Top Cyclic Triaxial Testing System
The new developed cyclic tabletop electromechanical closed-loop controlled triaxial load frames are characterized by their high accuracy for stress-strain triaxial tests with static and cyclic automatic loading possibilities up to 10kN and 10Hz.
The cyclic actuator is placed on upper traverse and has dedicated dynamic controller to run all cyclic loads required for different applications. The upper traverse can be adjusted per as the size of triaxial cell or other test applications.
The test apparatus is suitable for compression and extension tests with isotropic or anisotropic consolidation and covering whole testing applications and comply with international standards.
- Features
- Specifications
- Software
- Standards
- Applications
- Standard triaxial tests (CD, CU, UU) B-value check control
- Stress path triaxial tests (p, q and s, t) Resilient modulus
- Uniaxial compression test
- Consolidation test
- Isotropic and anisotropic consolidation
- High-precision strain, stress and position closed- loop controlled load frame -User defined test procedures with advance GEOsys Software
|
Static axial load |
5kN /10 kN |
|
Cyclic axial load |
5kN / 10 kN |
|
Cyclic frequency |
5 Hz / 10Hz |
|
Confining pressure |
Up to 3 MPa |
|
Sample size |
Up to 150 mm |

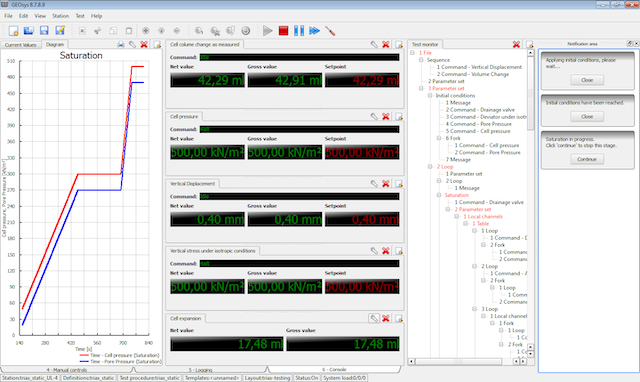

- Data Acquisition, processing, and device management (DPD) Module
- Saturation Module
- B-value -Test Module
- Consolidation Module (Isotropic or anisotropic)
- Permeability Test Module
- Stress path module: Linear stress paths- p, q or s, t
- Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
- Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
- Static Shear Stage Module:CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
- Unsaturated Test Module
- K0 Test Module
- Tension (Extension) Test Module
- Dynamic Shear Stage Module :
- Advanced loading Module
- Resilient Modulus Test Module
- Temperature-Controlled Triaxial Testing
- Cyclic Cell / Back Pressure Module
- ASTM D-2850
- ASTM D-2850-03a
- ASTM D-3999-91
- ASTM D-5084
- ASTM D-5311
- ASTM D-7181
- ASTM D-7181-11
- BS 1377-6
- BS 1377-8
- AASHTO T-292
- AASHTO T-294
- AASHTO T-307
- AASHTO T-307-99
- AASHTO TP-46
- CEN ISO/TS 17892-11
- CEN ISO/TS 17892-8
- CEN ISO/TS 17892-9
- AS 1289.6.4.1
- AS 1289.6.4.2
- AS 1289.6.6.1
- JGS 0521
- JGS 0522
- JGS 0523
- JGS 0524
- JGS 0525
- JGS 0526
- JGS 0541
- JGS 0542
Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils
Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils
Standard Test Method for: The Determination of the Modulus and Damping Properties of Soils Using Cyclic Triaxial Apparatus
Standard Test Methods for Measurement of Hydraulic Conductivity of Saturated Porous Materials Using a Flexible Wall Permeameter
Standard Test Method for: Load Controlled Cyclic Triaxial Strength of Soil.
Test Method for Consolidated Drained Triaxial Compression Test for Soils
Method for Consolidated Drained Triaxial Compression Test for Soils
Methods of Test for Soils for Civil Engineering Purposes: Consolidation and Permeability Tests in Hydraulic Cells and with Pore Pressure Measurement
Methods of test for Soils for civil engineering purposes - Part 8: Shear strength tests (effective stress)
Interim Method of Test for Resilient Modulus of Subgrade Soils and Untreated Base/Subbase Materials
(replaced by AASHTO T-307)
Standard Method of Test for Resilient Modulus of Unbound Granular Base/Subbase Materials and Subgrade Soil-SHRP Protocol P46
Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials
Standard Method of Test for Determining the Resilient Modulus of Soils and Aggregate Materials
Standard Test Method for Determining the Resilient Modulus of Soils and Aggregate Materials
(replaced by AASHTO T-307)
Geotechnical investigation and testing — Laboratory testing of soil — Part 11: Determination of permeability by constant and falling head
Geotechnical investigation and testing — Laboratory testing of soil — Part 8: Unconsolidated undrained triaxial test
Geotechnical investigation and testing -- Laboratory testing of soil - Part 9: Consolidated triaxial compression tests on water-saturated soils
Soil strength and consolidation tests- Determination of compressive strength of a soil-Compressive strength of a specimen tested in undrained triaxial compression without measurement of pore water pressure.
Soil strength and consolidation tests-Determination of compressive strength of a soil-Compressive strength of a saturated specimen tested in undrained triaxial compression with measurement of pore water pressure
Soil strength and consolidation tests-Determination of the one-dimensional consolidation properties of a soil-Standard method.
Method for Unconsolidated-Undrained Triaxial Compression Test on Soils
Method for Consolidated-Undrained Triaxial Compression Test on Soils
Method for Consolidated-Undrained Triaxial Compression Test on Soils with Pore Water Pressure Measurements
Method for Consolidated-Drained Triaxial Compression Test on Soils
Method for K0 Consolidated-Undrained Triaxial Compression Test on Soils with Pore Water Pressure Measurements
Method for K0 Consolidated-Undrained Triaxial Extension Test on Soils with Pore Water Pressure Measurements
Method for Cyclic Undrained Triaxial Test on Soils
Method for Cyclic Triaxial Test to Determine Deformation Properties of Geomaterials
- Detailed information will follow soon
