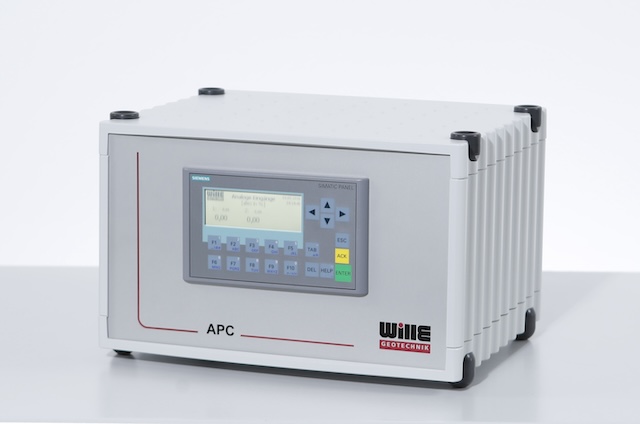

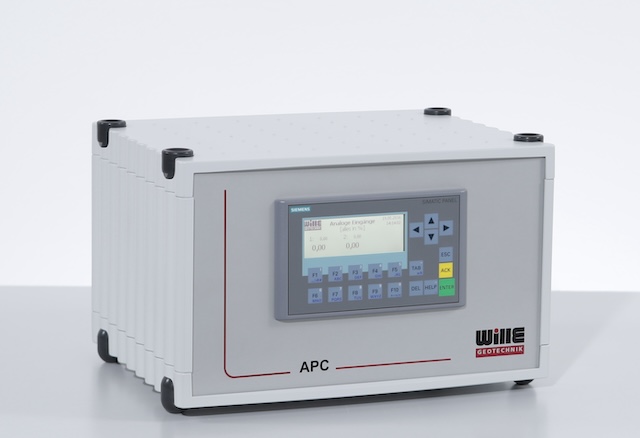

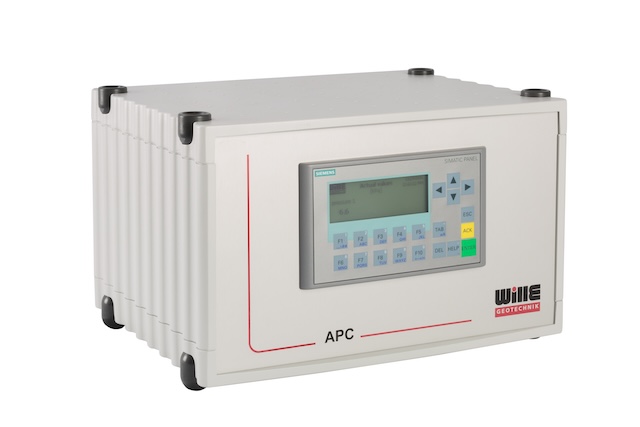

AIR PRESSURE CONTROLLER (APC)
This microprocessor closed-loop controlled Compact pressure controller APC generates precisely Air pressure with different pressure ranges up to 2000kPa for up to 3 independent pressure lines for different test applications (e.g. confining pressure, pore pressure and unsaturated tests).
This device is used for applications related to the control of pressure for various inert gases e.g. Air, Argon, Helium, Nitrogen and etc.
The device works under closed-Loop control by an integrated data acquisition and control unit. It Includes a high accuracy pressure transducer to measure the pressure. The device can be directly operated by a touch sensitive keypad or via PC with controlling software and has a displayer in front panel.
- Features
- Specifications
- Software
- Standards
- Applications
- Microprocessor-controlled precision
- No need an additional data logger
- Closed-loop control of the pressure with an accuracy of 0.1 % by internal high-quality pressure transducers
- Direct operation of the device by a touch sensitive keypad or via PC with controlling software (communication protocol is available)
- Calibration data input via the integrated keyboard with password protection and permanent storage
- Ethernet and serial port with ASCII or LabView protocol
- Manual control or by software/PC
- Compatible to LABVIEW©
- High quality industrial controller with displayer and membrane keys for monitoring of measured values and test procedures
|
Maximum pressure range |
1000 / 1600 kPa /2000 kPa |
|
Pressure Resolution |
0.1 kPa |
|
Accuracy |
0.1 % of full scale |
|
Pressure outlets |
1, 2 or 3 channels |
|
Interface |
Ethernet |
|
Media |
Air, Argon, Helium ,Nitrogen or any inert gases |
- Not available
- Not available
- Detailed information will follow soon
