Bishop and Wesley Triaxial Testing Device

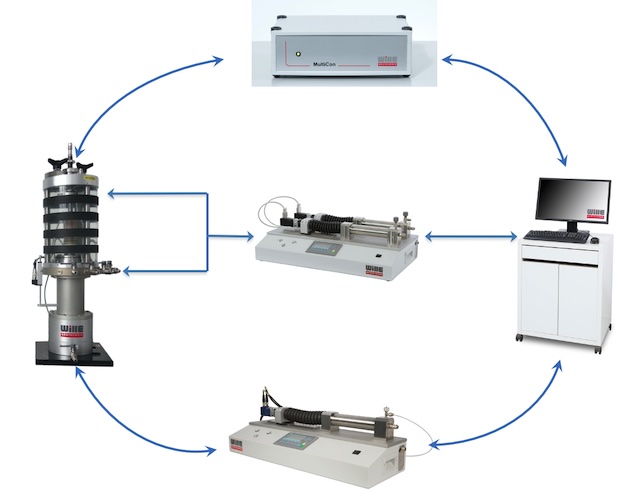

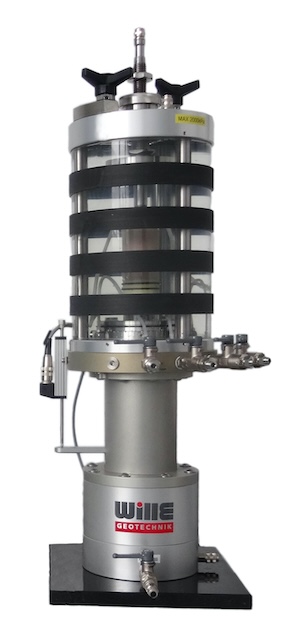

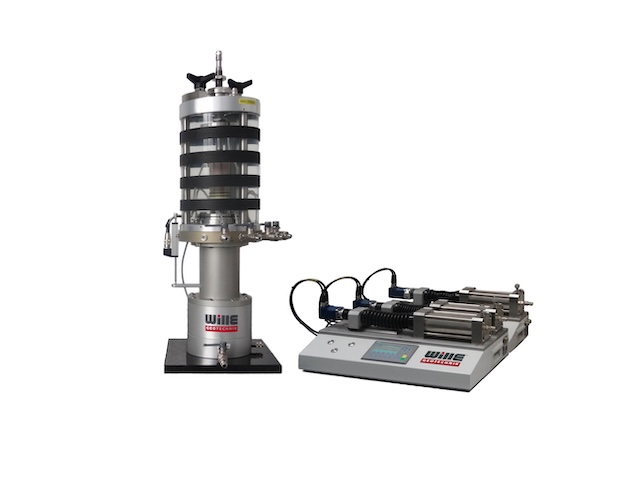

This high-quality stress path triaxial system is a fully automatic system consisting basically of a Bishop & Wesley cell which controls stress directly on the sample, three volume pressure controller(VPC), an internal submersible load cell to measure axial load, a pressure transducer to measure pore water pressure and a linear displacement transducer to measure vertical displacement.

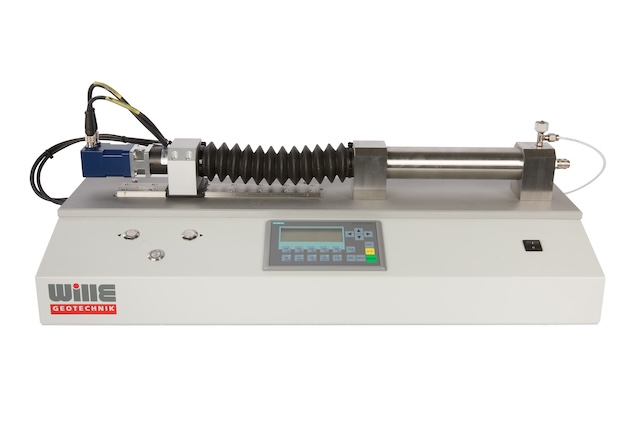

Thanks to the integrated software and also the keyboard controller (volume pressure controller), the operation of the device is very user-friendly. Exchangeable, pre-calibrated measuring sensors guarantee high accuracy over a wide measuring range. All the tests are running under PC control like stress path, K0, slow cyclic etc.
- Features
- Specifications
- Software
- Standards
- Applications
- Tabletop System
- Easy sample set up and handling of the test
- Sample Size up to 100mm
- Different Cell pressures 2MPa / 10MPa or 20Mpa
- Different Axial Loads 7kN up to 50kN
- Microprocessor-controlled precision
- Direct operation of the device by a PC with controlling software (communication protocol is available)
- Displacement closed-loop control using external or internal displacement transducer via software
|
Sample Size/s |
38mm - 50mm / 70mm-100 mm |
|
Cell Pressure |
2 MPa/ 10 MPa/ 20 MPa |
|
Max. Axial Load |
7kN / 25kN / 50kN |
|
Max. Axial Load with Motorized version |
50kN |
|
Pressure Accuracy |
0.1% F.S |
|
Pressure Resolution |
0.1 kPa |
|
Volume Accuracy |
0.1% F.S |
|
Range of testing Temperature |
Optional |
- Data Acquisition, processing and device management (DPD) Module
- Saturation Module
- B-value -Test Module
- Consolidation Module (Isotropic or anisotropic)
- Permeability Test Module
- Stress path module: Linear stress paths- p, q or s, t
- Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
- Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
- Static Shear Stage Module: CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
- Unsaturated Test Module
- K0 Test Module
- ASTM D-2850
- ASTM D-2850-03a
- ASTM D-4767
- ASTM D-5084
- ASTM D-7181
- ASTM D-7181-11
- BS 1377-6
- CEN ISO/TS 17892-11
- CEN ISO/TS 17892-8
- CEN ISO/TS 17892-9
Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils
Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils
Standard Test Method for: Consolidated Undrained Triaxial Compression Test for Cohesive Soils.
Standard Test Methods for Measurement of Hydraulic Conductivity of Saturated Porous Materials Using a Flexible Wall Permeameter
Test Method for Consolidated Drained Triaxial Compression Test for Soils
Method for Consolidated Drained Triaxial Compression Test for Soils
Methods of Test for Soils for Civil Engineering Purposes: Consolidation and Permeability Tests in Hydraulic Cells and with Pore Pressure Measurement
Geotechnical investigation and testing — Laboratory testing of soil — Part 11: Determination of permeability by constant and falling head
Geotechnical investigation and testing — Laboratory testing of soil — Part 8: Unconsolidated undrained triaxial test
Geotechnical investigation and testing -- Laboratory testing of soil - Part 9: Consolidated triaxial compression tests on water-saturated soils
- Detailed information will follow soon
