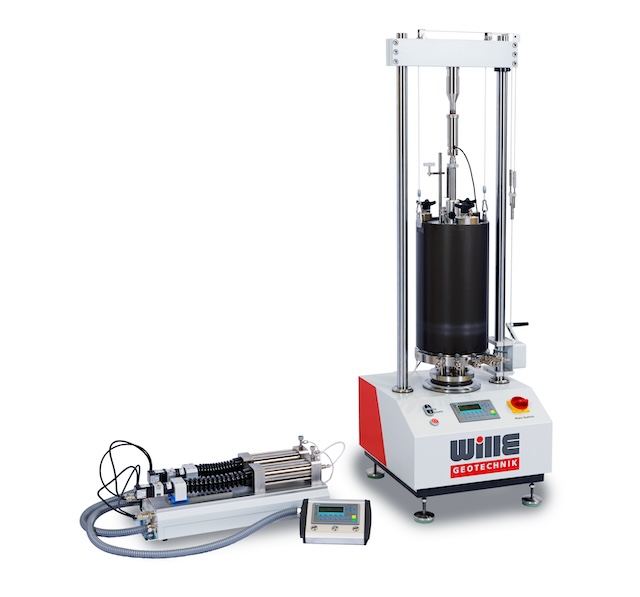

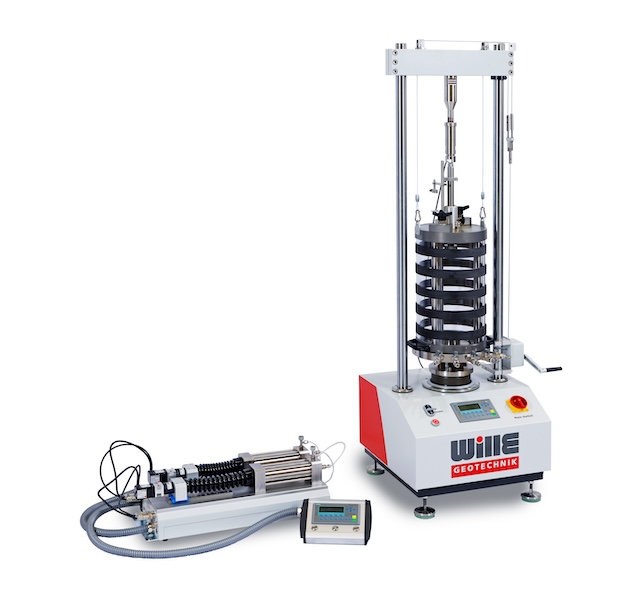

Static Triaxial Test Device (Table Top)

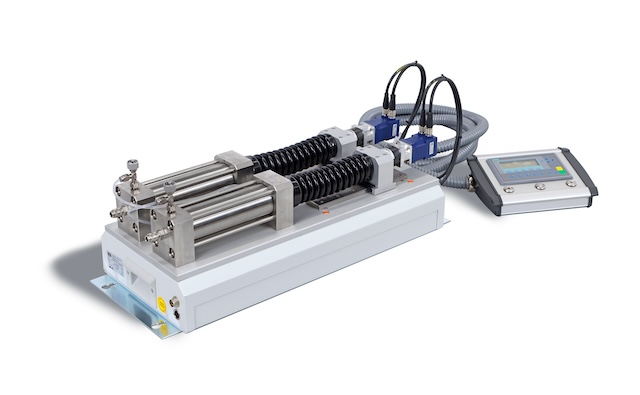

This series of Static Triaxial testing system is modular constructed and can be configured with a variety of sample adapters, Triaxial cells, pressure plates, automatic pressure controlling units, automatic volume measuring device , controlling and data acquisition system with different transducers and variety of software modules.

These high-quality stress path triaxial testing systems are consisting basically of bench top 2 column Electromechanical universal load frame incorporates an extensive range of features making them ideal for performing either complex or ordinary soil testing applications and are characterized by their robust, functional design.

The test devices are suitable for standard triaxial tests,isotropic or anisotropic consolidation. These configurations are ideal for educational, research and commercial purposes.

Inquiry

Get general catalogues

Features
Specifications
Upgrade Options
Software
Standards
Applications

High stiffness robust and compact design

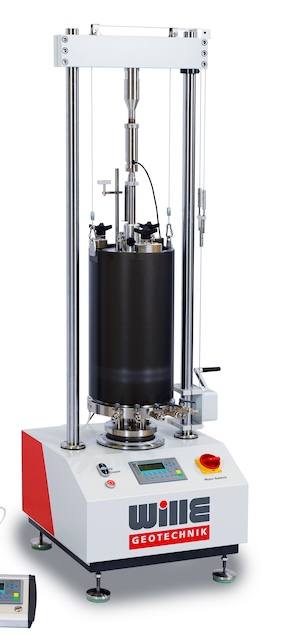

Table top electromechanical load frame with 2 columns with powder-coated
High quality industrial controller with displayer and membrane keys or Touch panel and graphic display for monitoring of measured values and test procedures
Easy sample setup and handling of the test
Axial load up to 50 kN
Sample size up to 150 mm diameter and 300mm height
Cell pressure up to 5000 kPa (optionally up to 20MPa)
Precise settlement control by using an accurate displacement Transducer
Lifting mechanism for cell wall

Axial Laod	10kN up to 50KN
Sample size	38mm up to 150mm
Cell pressure	2000 kPa (upgradable up to 10 MPa)

Lifting device for Triaxial cell
Drip tray for under triaxial cell to collect water and drain it
Temperature control package
Bender Element package
Unsaturated Test
Local strain transducers
Submersible load cell
High Pressure cell up to 20 MPa
Cyclic triaxial tests
K0 tests
Water degassing apparatus

Data Acquisition, processing and device management (DPD) Module
Saturation Module
B-value -Test Module
Consolidation Module (Isotropic or anisotropic)
Permeability Test Module
Stress path module: Linear stress paths- p, q or s, t
Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
Static Shear Stage Module: CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
Unsaturated Test Module
K0 Test Module
Tension (Extension) Test Module

ASTM D-2850

Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils

ASTM D-2850-03a

Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils

ASTM D-7181

Test Method for Consolidated Drained Triaxial Compression Test for Soils

ASTM D-7181-11

Method for Consolidated Drained Triaxial Compression Test for Soils

BS 1377-6

Methods of Test for Soils for Civil Engineering Purposes: Consolidation and Permeability Tests in Hydraulic Cells and with Pore Pressure Measurement

BS 1377-7

Methods of test for Soils for civil engineering purposes - Part 7: Shear strength tests (total stress)

BS 1377-8

Methods of test for Soils for civil engineering purposes - Part 8: Shear strength tests (effective stress)

AS 1289.6.4.1

Soil strength and consolidation tests- Determination of compressive strength of a soil-Compressive strength of a specimen tested in undrained triaxial compression without measurement of pore water pressure.

AS 1289.6.4.2

Soil strength and consolidation tests-Determination of compressive strength of a soil-Compressive strength of a saturated specimen tested in undrained triaxial compression with measurement of pore water pressure

AS 1289.6.6.1

Soil strength and consolidation tests-Determination of the one-dimensional consolidation properties of a soil-Standard method.

JGS 0412

Test Method for one-dimensional consolidation Properties of Soils using constant rate of strain loading

JGS 0521

Method for Unconsolidated-Undrained Triaxial Compression Test on Soils

JGS 0522

Method for Consolidated-Undrained Triaxial Compression Test on Soils

JGS 0523

Method for Consolidated-Undrained Triaxial Compression Test on Soils with Pore Water Pressure Measurements

JGS 0524

Method for Consolidated-Drained Triaxial Compression Test on Soils
