ULTRA LARGE SCALE TRIAXIAL TEST SYSTEM
Large Triaxial Device up to 1000mm sample's Diameter
The Ultra large-scale triaxial testing systems is a unique customised systems configured based on the testing requirements of rockfill materials. It is for the determination of meaningful shear strength parameters is the best method compared to other existing methods for determining strength properties. It is used to evaluate landfill stability and to achieve the above-mentioned parameters.

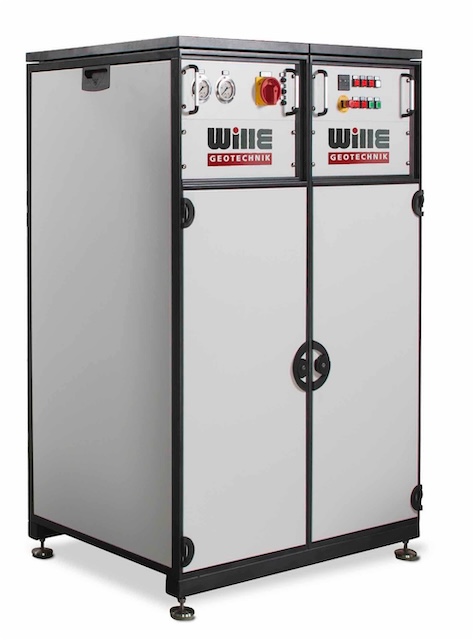

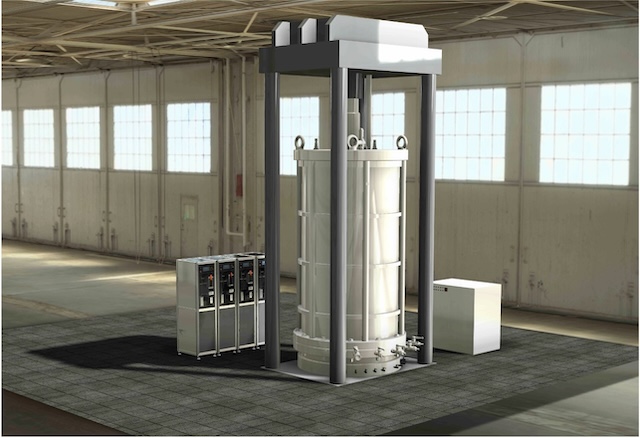

The loading frame is servo-hydraulic and can apply up to 5000 kN load on samples with a diameter of up to 1000 mm under cell pressure up to 3 MPa.

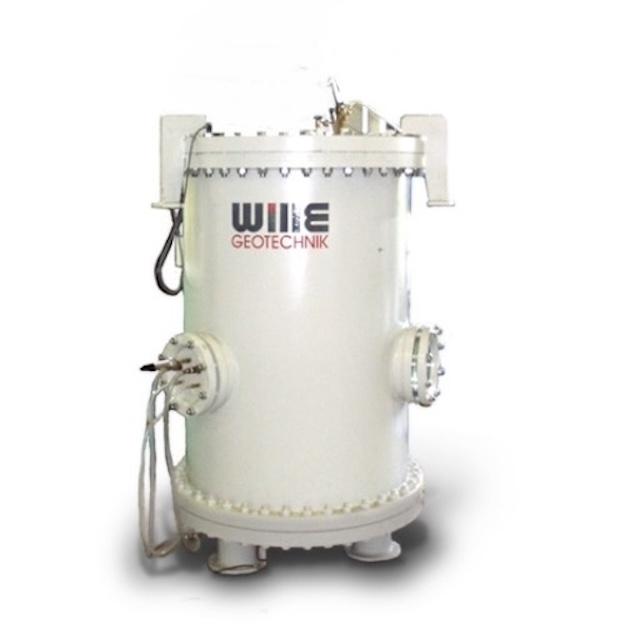

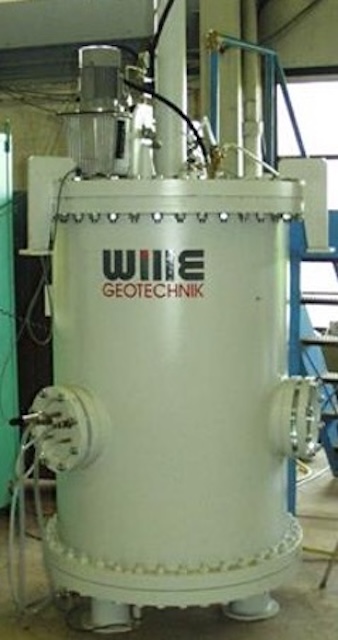

The wide column spacing enables accommodation of large cell of 1000mm in diameter. The load frame features a pneumatic sliding system, which allows easy movement of the triaxial cell out of the loading area, making test setup handling easier for the operator.
The powerful multifunctional GEOsys software supports all test procedures, providing easy access to all testing sessions.
- Features
- Specifications
- Software
- Standards
- Applications
- High-stiffness construction and precision-aligned load frame
- Double Acting extremely low friction servo-hydraulic actuator
- Suitable for samples with diameters up to 1000mm
- Special sample preparation kits and adaptors for different sample sizes
- Triaxial cells with different pressure ranges up to 3 MPa
- Software including different test modules e.g. Standard Static triaxial tests (CD, CU, and UU), Stress path tests, dynamic tests, etc.
|
Max Static Load |
Up to 5,000 kN |
| Sample Sizes | 1000mm / 900 mm |
|
Max. Working Pressure |
Up to 3 MPa |
|
Max. Sample height |
2000mm |
|
Piston Stroke |
Up to 400 mm |
|
Force Accuracy |
0.1% F.S |
|
Frame Stiffness |
10,000 kN/mm |
- Data Acquisition, processing and device management (DPD) Module
- Saturation Module
- B-value -Test Module
- Consolidation Module (Isotropic or anisotropic)
- Permeability Test Module
- Stress path module: Linear stress paths- p, q or s, t
- Static Shear Stage Module: UU: Unconsolidated Undrained Triaxial Test (Total Stress test)
- Static Shear Stage Module: CU: Consolidated Undrained Triaxial Test with pore pressure measurement (Effective Stress test)
- Static Shear Stage Module: CD: Consolidated Drained Triaxial Test with pore pressure measurement (Effective Stress test)
- Unsaturated Test Module
- K0 Test Module
- Tension (Extension) Test Module
- Not available
- Detailed information will follow soon
